Congratulations to LRS member Brian Flynn whose article “A Versatile PLL PC Board Design – for Applications from HF to Microwaves” is published in the opening issue of the new RSGB publication RadCom.plus. This is available online only, and only to RSGB members. (There’s a moral there somewhere)!

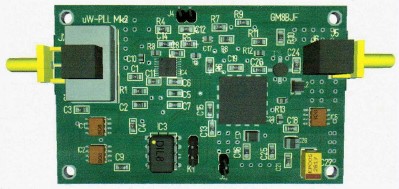

Brian’s circuit provides accurate, stable frequency sources in the frequency range from a few MHz to 4GHz, depending on programming and components used, with a power output of around +10dBm.
Illustrations courtesy of RSGB.
The other articles in issue #1 are:
The DG8 2m Masthead Preamp, by Ian White GM3SEK
Building a Dual Z-Match, by Bob Burns G3OOU
Examining Sporadic-E, by Dr. Chris Barnes GW4BZD
High-Performance Common-Mode Chokes, by Steve Hunt G3TXQ
Screening, by Peter Chadwick G3RZP
