1982 – GB3ANG Beacons Installation by LRS Members et al

In January 1982 a group of amateurs, including several from the Lothians Radio Society, installed beacons for 6m, 2m, 70cm and 23cm in the county of Angus, using the callsign GB3ANG. Photos courtesy Chris Tran GM3WOJ.



“The Crew”.

On ladder: Chris Tran GM3WOJ, David Anderson GM4JJJ.

Standing: Brian Flynn GM8BJF, John Wilson G3UUT, Peter Dick GM4DTH, Pete Bates GM4BYF, unknown sprog.

John G3UUT, IARU Region 1 VHF Beacons Coordinator, had come up from Cambridge to give an LRS talk earlier in the week.

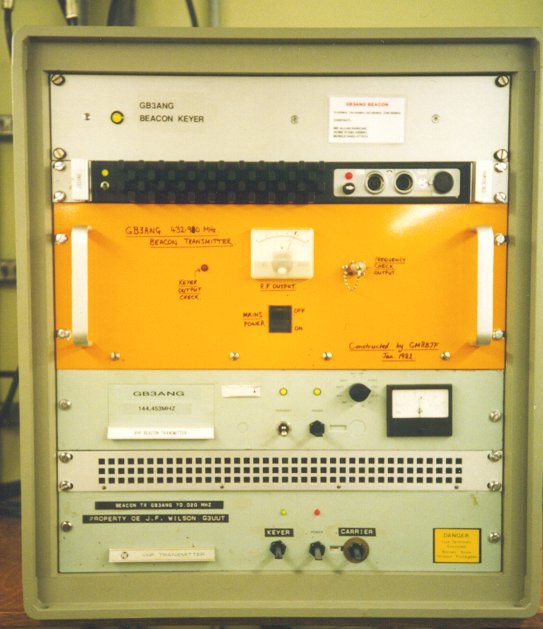

Equipment Rack (19-inch of course).

……………………………………………………………………………………………………………………..

Brian GM4DIJ writes:

I found the circuit diagram of the 70cm keyer and the diode matrix programming sheet. I re-designed the GB3EDN TTL keyer in CMOS, which was cutting edge technology in those days. The current consumption went down from nearly 1 Amp to 10mA.

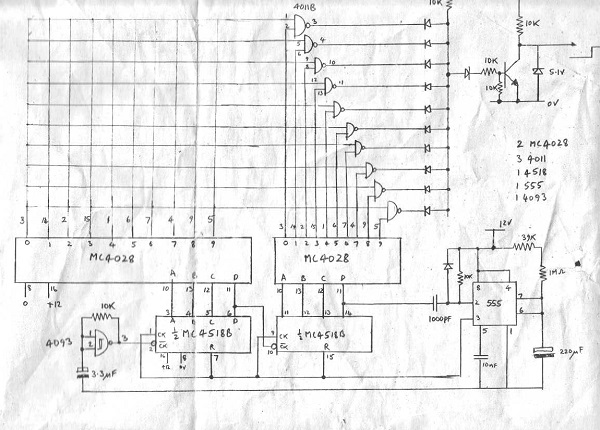

GB3ANG 70cm CMOS keyer circuit by Brian GM4DIJ.

…………………………………………………………………….

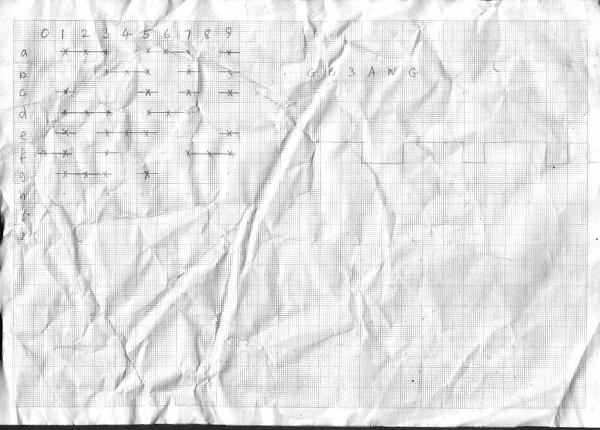

Diode matrix programming sheet by Brian GM4DIJ.

…………………………………………………………………….

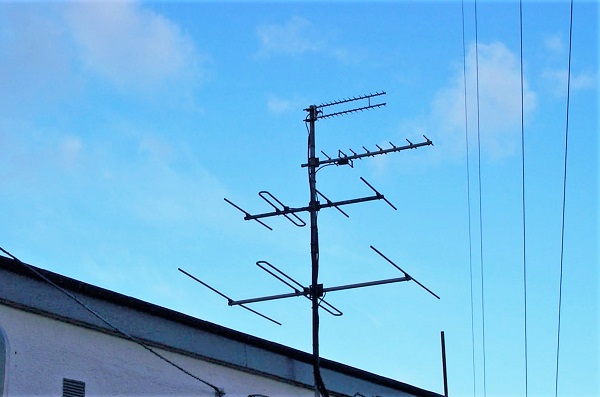

Better shot of the antennas, looking solid enough to last for decades! (Which they did!)

====================================================================
